LANDTEK Digital Paint Coating Thickness Gauge CM8829FN Magnetic Induction Eddy Current (F/NF) 1250um CM-8829FN

1 Piece
MOQ
$185.00(1 - 4 Pieces) $165.00(5 - 9 Pieces) $155.00(10 - 19 Pieces) $150.00(>=20 Pieces)
Precio
LANDTEK Digital Paint Coating Thickness Gauge CM8829FN Magnetic Induction Eddy Current (F/NF) 1250um CM-8829FN
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 1 year
Customized support: OEM
Model Number: CM-8829FN
Operating Principle: Magnetic Induction / Eddy Current (F / NF)
Measuring Range: 0~1250 um / 0~50 mil
Resolution: 0.1 um / 1 um
Accuracy: ± 1~3%n or ± 2.5 um
Probe: Built-in probe
Información básica
Model Number: CM-8829FN
Pago y Envío Términos
Packaging Details: 1 unit is 1kg. carton size: 26*26*8.5cm 20pcs is 14.5kg. carton size: 45*28*57cm
Descripción de producto

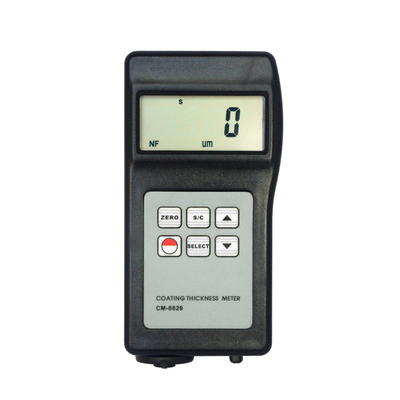

Coating Thickness Meter CM8829FN

Application:used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.

* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “ BT ™ data output” choice.
* Separate Type can provide several type probe, measure can be more flexibility.
Operating Principle Magnetic Induction / Eddy Current (F / NF)
Measuring Range 0~1250 um / 0~50 mil
Resolution 0.1 um / 1 um
Min. Radius Workpiece F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm
Min. Measuring Area 6 mm
Min. Sample Thickness 0.3 mm
Accuracy ± 1~3%n or ± 2.5 um
Auto Power Off
Metric / Imperial Convertible
Battery Indicator Low Battery Indicator
Operating Conditions Temp. 0~40 °C, Humidity: 10~90 %RH
Power Supply 4 x 1.5 V AAA (UM-4) Battery
Dimensions 126 x 65 x 27 mm
Weight 81 g (Not Including Batteries)

Packaging & Shipping

1 unit is 1kg. carton size: 26*26*8.5cm

20pcs is 14.5kg. carton size: 45*28*57cm

Standard Accessories:

1. Main Unit

2. Probe (F Type / NF Type)

3. Calibration Base Set (F Type / NF Type) CTG-BS

4. Calibration Foils CTG-CF (1 set, 4 pieces)

5. Carrying Case

6. Operation Manual

Optional accessories:

1. USB, RS-232C data cable with software
2. BT data out put with software
