Inicio /Productos/Medidor del espesor del cuero/CEM DT-157H 0~2000um Metal Thickness Gauge Coating Thickness Gauge Meter Tester For Car Paint Automotive Metal

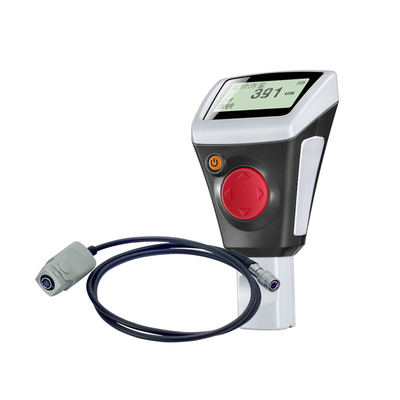

CEM DT-157H 0~2000um Metal Thickness Gauge Coating Thickness Gauge Meter Tester For Car Paint Automotive Metal

2 Pieces
MOQ
CEM DT-157H 0~2000um Metal Thickness Gauge Coating Thickness Gauge Meter Tester For Car Paint Automotive Metal
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: DT-157H
Product name: Coating Thickness Gauge
Measuring range: 0-2000um
Application: Metal Thickness Measurement
Accuracy: 1-2%um
Principle: Magnetic Method (F-type probe) & Eddy Current Method
Resolution: 0.1 um
Type: Hand Measuring Tools
Size: 120mm x 60mm x 40mm
Weight: 120g
Interface: Bluetooth
Información básica
Model Number: DT-157H
Pago y Envío Términos
Packaging Details: Our products mainly packed by Wooden Case or other security package, you can choose ocean shipping, air transport or other means of transport
Descripción de producto

Features
Non-magnetic coatings (e.g. paint, zinc) on steel
Insulating coatings (e.g. paint) on no-ferrous metals
No-ferrous metals coatings on insulating substrates
Menu operation system
Two working modes: DIRECT and GROUP mode
Statistic Display: AVG, MAX, MIN, NO., S.DEV
One point calibration, two points calibration and basic calibration easily
Delete single readings and all group readings easily
Low battery, error indication
Memory for 2500 readings (50 GROUP readings)
4 levels of battery indication
Error indication
Bluetooth interface
Easily adapt to lighting conditions with 8 levels of backlight

Specifications:
Sensor probeFN
Working principlemagnetic inductionEddy current principle
Measuring range0~2000um0~2000um
Guaranteed tolerance (of reading)(+/- 2%+2)um(+/- 2%+2)um
Repeatability(+/- 1%+1)um(+/- 1%+1)um
Low range Precision0.1um0.1um
Minimum curvature radius1.5mm3mm
Diameter of Minimum area7mm5mm
Basic critical thickness0.5mm0.3mm

Size (H x W x D): 120mm x 60mm x 40mm
Weight: 120g
