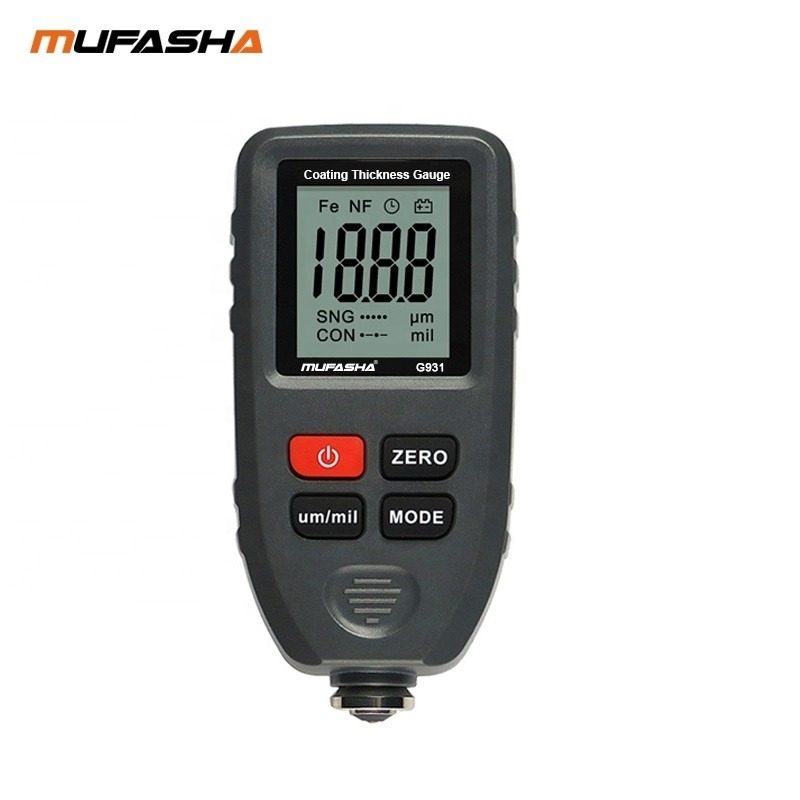

Magnetic Electronic Fe and NFe Coating Thickness Gauge MUFASHA

1 piece
MOQ
$38.25(1 - 99 pieces) $36.66(100 - 499 pieces) $35.06(>=500 pieces)
Precio
Magnetic Electronic Fe and NFe Coating Thickness Gauge MUFASHA
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 1 years
Customized support: OEM, ODM
Model Number: G931
Material of Substrate: Fe and NFe
Measuring Range: 0~1300um
Measuring Accuracy: ±2um+3%
Resolution Ratio: 0.1um
Measuring units: um/mil
Power: 1*9V battery
Weight/Size of meter: 106g/120*62*32mm
Weight/Size of package: 284g/170*85*55mm
Out carton: 50 pcs
Certificación: CE, ROHS
Información básica
Certificación: CE, ROHS
Model Number: G931
Pago y Envío Términos
Packaging Details: Gift box
Descripción de producto
Product Description
It is used to measure thickness of non-magenetic material(for example paint, plastic,copper,zinc,chromium etc) on magnetic substrate(for example steel, iron etc), or thickness of non-conductive material(for example paint, plastic, film etc) on non-magnetic substrate(for example copper,zinc,chromium etc), moreover the gauge can detect the substrate if it is magnetic or non-magnetic automatically.
Product Paramenters
Model
G931
G932
Measuring range
0~1300um/0~51.2mil
0~1500um/0~59.1mil
Measuring accuracy
±2um+3%
±1um+2.5%
Resolution Ratio
0.1um@10-99.9um 1um@100-1300um
Material of Substrate
Fe and NFe
Screen backlight
No
Yes
Principle
Magnetic Induction@Fe Eddyu Current@NFe
Calibration Standard Sheet
50/100/250/500/1000um
Units
um/mil
Min Curvature Radius Convex
1.5mm
Min Curvature Radius Concave
25mm
Minimum Measuring Area
Φ6mm
Min Thickness of Substrate
0.5mm for Fe Substrate 0.3mm for NFe Substrate
Power-off automatically
15 minutes without any operation
5 minutes without any operation
Power
1*9V battery
4*AAA batteries
Weight/Size of meter
106g/120*62*32mm
126g/155*62*35mm
Weight/Size of package
284g/170*85*55mm
321g/170*85*55mm
Out carton
50pcs/carton,15.2kg/435*350*295mm
50pcs/carton, 17.1kg/435*350*295mm
